Light Green 1.25g/Cm3 Epoxy Tooling Board For Foundry Pattern Plates Foundry Core Boxes

Brand Name : LH-tool®

Model Number : LH-WB-1250

Certification : ISO9001:2008 Standard

Place of Origin : China

MOQ : 10 Sheets

Price : Negotiation

Payment Terms : T/T

Supply Ability : 3000 Sheets Month

Delivery Time : 15 Days

Packaging Details : Standard Carton Packing

Materials : Polyurethane

Color : Light green

Size : 1000x500

Density : 1.25

Hardness : 77-83

Thickness : 35mm 50mm 75mm 100mm

Contact Now

Color Light green 1.25g/Cm3 Tooling Board For Foundry pattern plates Foundry core boxes

Light Green 1.25g/Cm3 Epoxy Tooling Board For Foundry Pattern Plates Foundry Core Boxes

LH-TOOL WB-1250

High-tech polyurethane plate

· The color is light green
· Density 1.25 g /cm3
· Resistant to high temperature to 85 ºC
· First-rate surface reduces the need for finishing
· Compatible with all paints, release agents and epoxy prepregs that meet industry standards

Working board (WB)
The LH® TOOL workboard combines excellent quality with outstanding mechanical properties.
Semi-finished products -- prefabricated rectangular panels -- are made in epoxy or polyurethane and can be bonded into a variety of shapes and sizes.
The LH® TOOL adhesive matches the hardness and color of the board.
The LH® TOOL work board has a density range of 0.69 to 1.7 g/cm3, providing excellent dimensional stability and easy and fast machining.

Technical parameter

Style LH-TOOL WB-1250
Color Light green
Density(ISO 1183) g/cm3 1.25
Applications

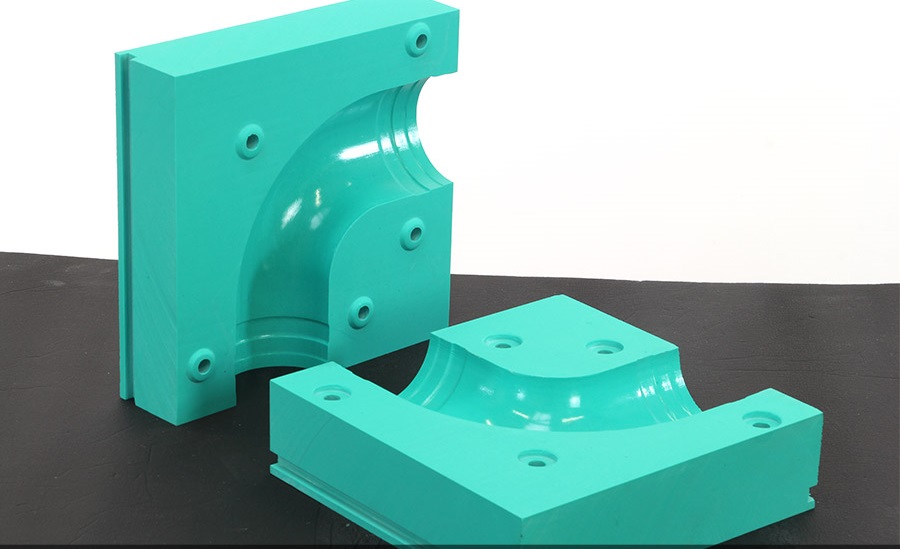

> Foundry models
> Foundry pattern plates
> Foundry core boxes
Key Properties
Easy to mill
> Low wear of milling tools
> Very good amine resistance
> Very good abrasion resistance
> Resistant to dry ice cleaning
Hardness(ISO868)Shore D

77-83
Coefficient of thermal expansion
(ISO11359)10-6K-1		 70-75
Deflection temperature
(ISO 75) °C		 80-85
Compressive strength
(ISO 604) MPa		 70-80
Flexural strength
(ISO 178) MPa		 90-100
Size mm 1000 x 500 x 50 mm
1000 x 500 x 75 mm
1000 x 500 x 100 mm
